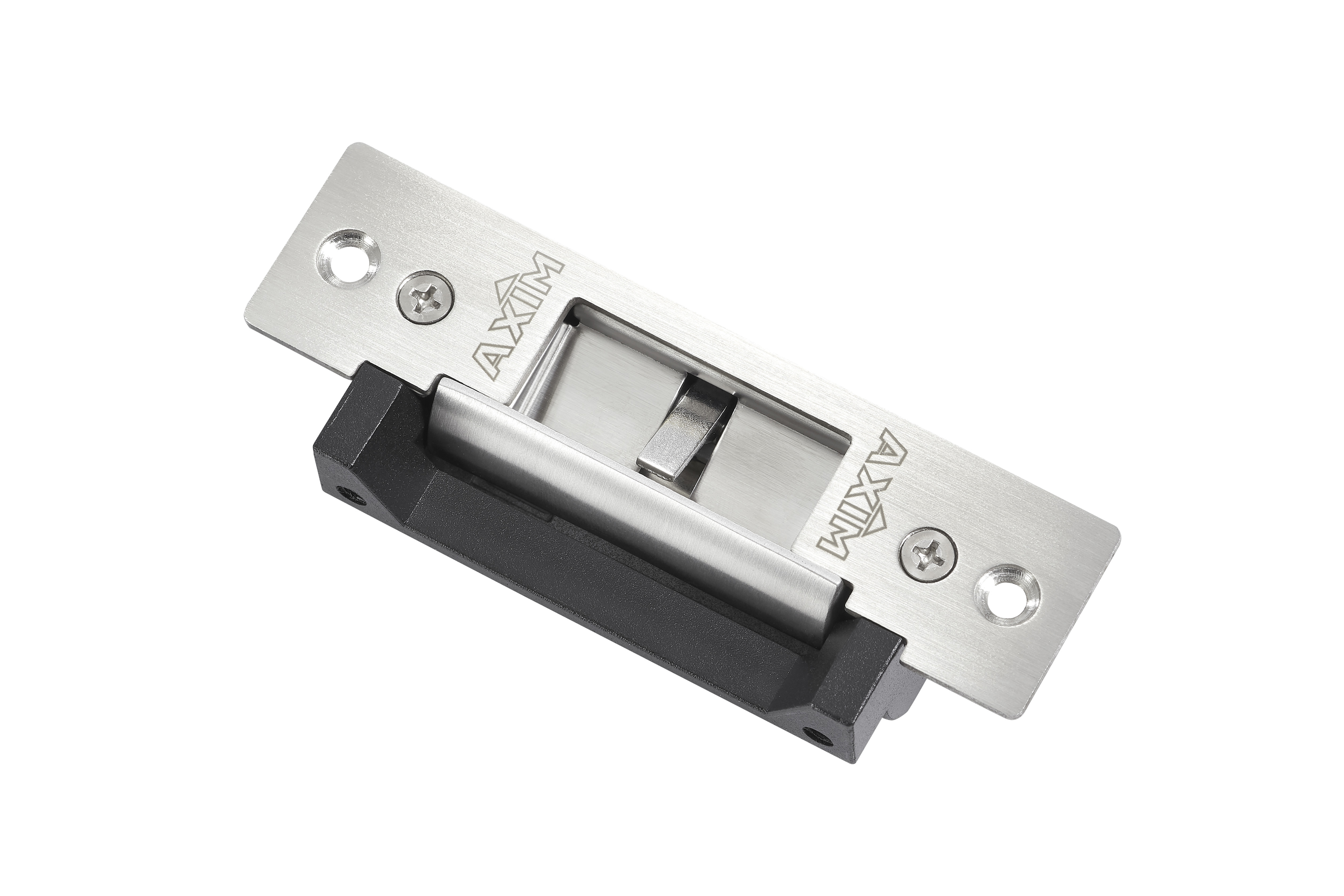

Available January 2019 – The All New ES-2200 Electric Strike Series

The ES-2200 series electric releases are an ANSI style door release, complete with stainless steel short or long faceplates for use in metal or timber frame applications. The electric release is designed to work with most leading brand deadlocking night latch locks.

Each release is supplied as fail secure operation but can easily be changed to fail safe operation. The releases also have two forms of monitoring, latch (ES-2200-M) or latch with door position versions available (ES-2200-DM).

The electric releases which are shipped as fail secure can be converted to fail safe mode by the simple removal of a screw, and can also be set 12V or 24V by simply reconfiguring the wires in a different order.

Features & Benefits:

  • 1000lbs (500kg) Holding Force
  • Simple Fail Safe/Fail Secure Changeover
  • Easy installation
  • 12/24V AC/DC on Site Settable
  • AC Fail Secure only & DC Fail Safe/Fail Secure
  • Long and short stainless-steel faceplates are provided
  • Easy replacement for most leading brand ANSI electric releases
  • Supplied with 250mm of cable
  • 25 and 50mm extension lips available
  • Power consumption and current draw: 12/24V DC – 300mA 24/24V DC – 150mA
